Patcher Setup

When you add the SPARCK CORE to a patcher via the context menu, it creates several interconnected objects. This page explains what each component does and which ones are essential.

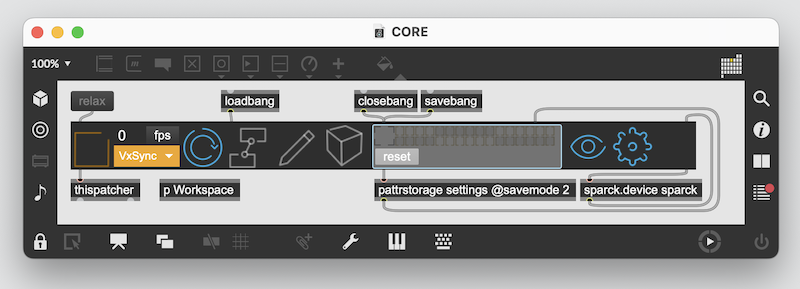

CORE overview in patcher

Essential Components

Do not remove

The following components are essential for SPARCK to function. Do not delete them or disconnect them from the toolbar.

CORE Toolbar

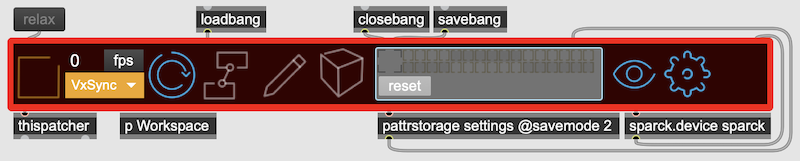

CORE Toolbar component

The main component containing SPARCK's backbone functionality. The toolbar provides the user interface and coordinates all other components.

sparck.device

sparck.device component

Do not remove

The sparck.device sparck object is essential for SPARCK. It manages all node properties. Do not delete it or disconnect it from the toolbar.

This object is a fork of libossia and handles property management for all SPARCK nodes.

pattrstorage

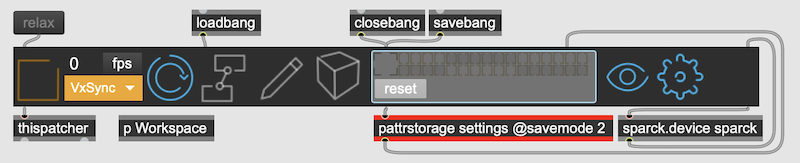

pattrstorage component

Do not remove

The pattrstorage object is essential for saving Max object properties within the patcher hierarchy.

The pattrstorage object uses Max's built-in system to store properties for any Max objects that have a script name and an autopattr object within the patcher.

savebang / closebang

savebang and closebang components

Do not remove

The savebang and closebang objects ensure properties are automatically stored when you save or close the patcher.

Together with the pattrstorage and sparck.device objects, these ensure that both pattr-managed and ossia-managed properties are automatically saved with your patcher.

  • savebang — triggers when the patcher is saved
  • closebang — triggers when the patcher is closed

loadbang

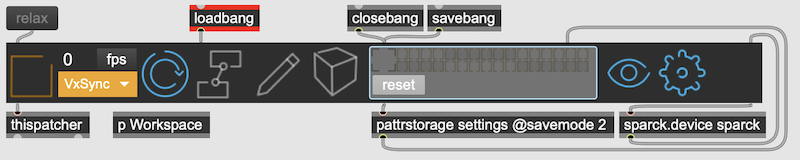

loadbang component

Do not remove

The loadbang object initializes SPARCK when the patcher opens. Without it, SPARCK won't start automatically.

The loadbang executes the SPARCK CORE once the complete patch is loaded.

Optional Components

Workspace

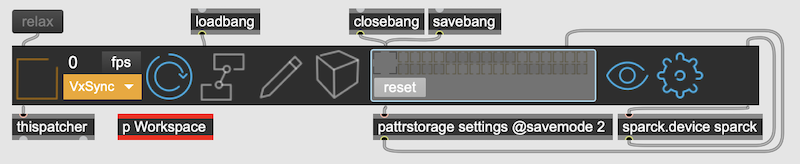

Workspace component

The Workspace is a subpatcher provided for your convenience. It's the recommended place to add your SPARCK nodes, keeping the root patcher clean and organized.

Workspace toolbar button

Click the Workspace icon in the toolbar to open it.

Benefits of using the Workspace:

  • Keeps SPARCK nodes organized in one place
  • Avoids clutter in the root patcher
  • Easier to navigate complex projects

Note

Using the Workspace is recommended but not required. You can place SPARCK nodes anywhere in the patcher hierarchy.
