The TextureOP node applies either a binary operator to two input textures, or a unary operator to the left input texture

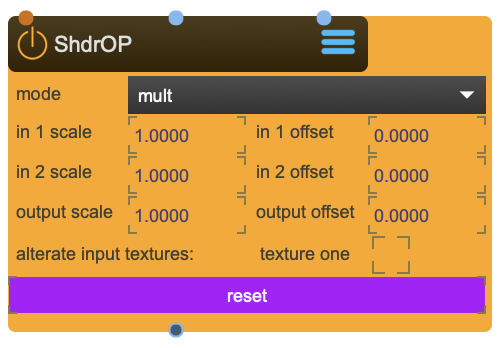

ShaderTexOP Node

Texture Math and Compositing

ShaderTexOP performs pixel-by-pixel mathematical operations between two textures. Use it for compositing, masking, blending, color manipulation, and creating complex texture effects by combining simpler inputs.

Reference

The following properties can be configured for this node:

Property Type Description
mode - operation mode (see details down below)
in1scale - scale scalar for texture left
in2scale - scale scalar for texture right
in1offset - offset scalar for texture left
in2offset - offset scalar for texture right
outScale - output offset
enable - use node for a texture effect render pass
Inlet Type Description
properties properties properties | use message [set <propertyPath> <value(s)>] (without node/<nodeName> at the beginning) to set internal properties
texture texture texture one (left operand)
texture texture texture two (right operand)
Outlet Type Description
result texture result of 1 op 2 (left op right)

Operation Modes

Binary Operators (Two Textures)

These operations combine texture 1 (left) and texture 2 (right):

Mode Operation Description
mult Multiplication tex1 × tex2 — Darkens, useful for masking
div Division tex1 ÷ tex2 — Brightens based on inverse
add Addition tex1 + tex2 — Brightens, combines light
sub Subtraction tex1 - tex2 — Difference between textures
mod Modulo tex1 % tex2 — Remainder operation
min Minimum min(tex1, tex2) — Darker of the two
max Maximum max(tex1, tex2) — Lighter of the two
avg Average (tex1 + tex2) / 2 — Blend 50/50
absdiff Absolute Difference |tex1 - tex2| — Highlight differences

Unary Operators (Single Texture)

These operations work on texture 1 (left) only:

Mode Operation Description
abs Absolute Value |tex1| — Remove negative values
pass Pass-through Output texture 1 unchanged (with scale/offset)

Input Scaling and Offset

Adjusting Input Values

Before the operation is applied, each input can be scaled and offset:

adjusted_value = (input × scale) + offset
Property Effect
in1scale Multiply texture 1 values (1.0 = unchanged)
in2scale Multiply texture 2 values (1.0 = unchanged)
in1offset Add to texture 1 values (0.0 = unchanged)
in2offset Add to texture 2 values (0.0 = unchanged)
outScale Scale the final output

Use these to normalize inputs or create specific blending ratios.

Common Use Cases

Masking with Multiply

Apply a mask to a texture:

  • Texture 1: Your content texture
  • Texture 2: Mask from DrawMask (white = visible, black = hidden)
  • Mode: mult

Result: Content is visible where mask is white, hidden where mask is black.

Combining Textures with Add

Layer multiple light sources or effects:

  • Texture 1: First light/effect
  • Texture 2: Second light/effect
  • Mode: add

Result: Additive blending (good for light effects, glow).

Finding Differences

Highlight what changed between two textures:

  • Texture 1: Reference texture
  • Texture 2: Comparison texture
  • Mode: absdiff

Result: White where textures differ, black where they match.

Render Pass Mode

Enable for Texture Effect Pass

Set enable to use ShaderTexOP as part of a texture effect render pass. When enabled, the node processes textures during the render pipeline rather than on-demand.
