Render Passes

Advanced Topic

This page covers advanced concepts for users who need fine-grained control over rendering order. For most projects, the default settings work well and you don't need to change these values.

The render and transform pass settings define how nodes interact with the SPARCK rendering pipeline. Understanding these concepts is useful when you need precise control over the order of operations within a frame.

How Passes Work

Each frame in SPARCK is the result of multiple passes — both transformation passes and render passes — that execute in a specific sequence. There are theoretically 30 passes that can happen in each frame.

The pass settings allow you to control:

  • When a node's transformation is calculated
  • When a node is rendered

When Do You Need This?

While default settings handle most use cases, there are circumstances where you need to explicitly control pass order.

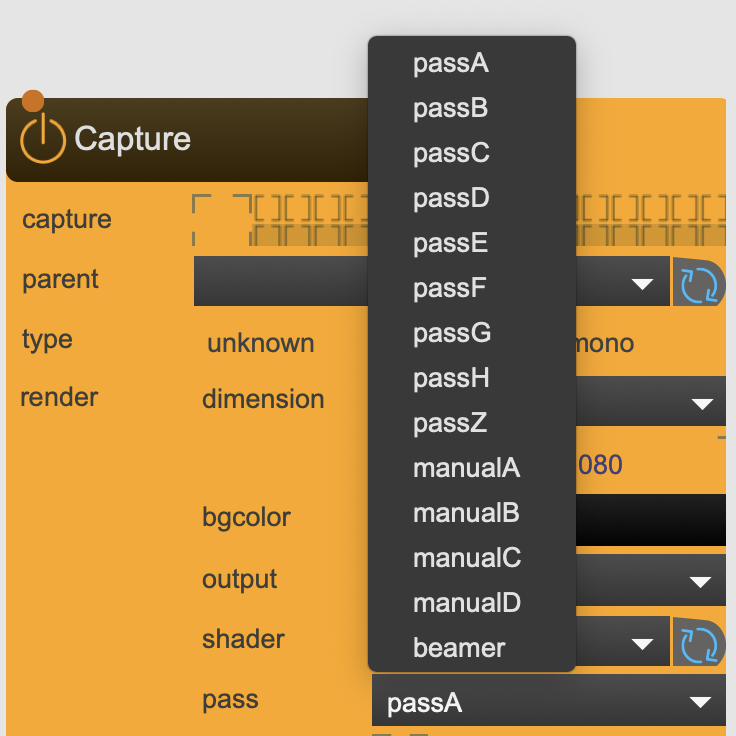

  • Render pass example

    Render Pass Example

    If the result of rendering one node (nodeA) produces a texture that is needed as input for another node (nodeB), nodeA must be rendered before nodeB. The render pass setting controls this sequence.

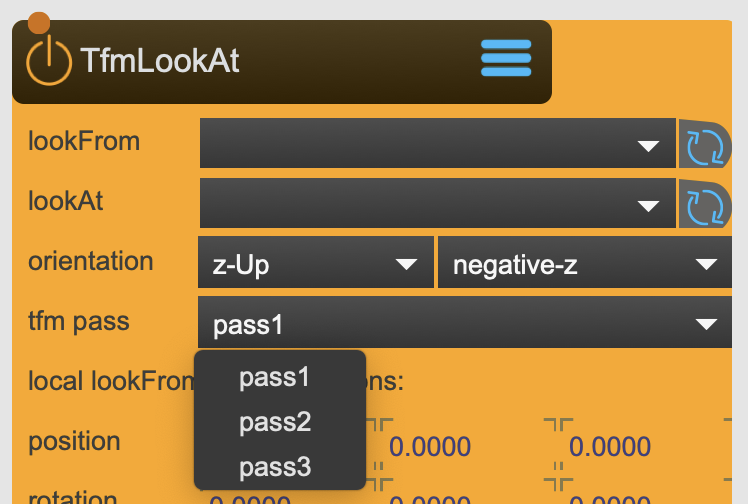

  • Transformation pass example

    Transformation Pass Example

    While standard transformation trees evaluate in hierarchy order, some transformation nodes produce matrices that are detached from the tree (like TfmLookAt or TfmMirror). If transformation treeB relies on the result of a TfmLookAt in treeA, treeB needs to execute after treeA.

Complete Pass Overview

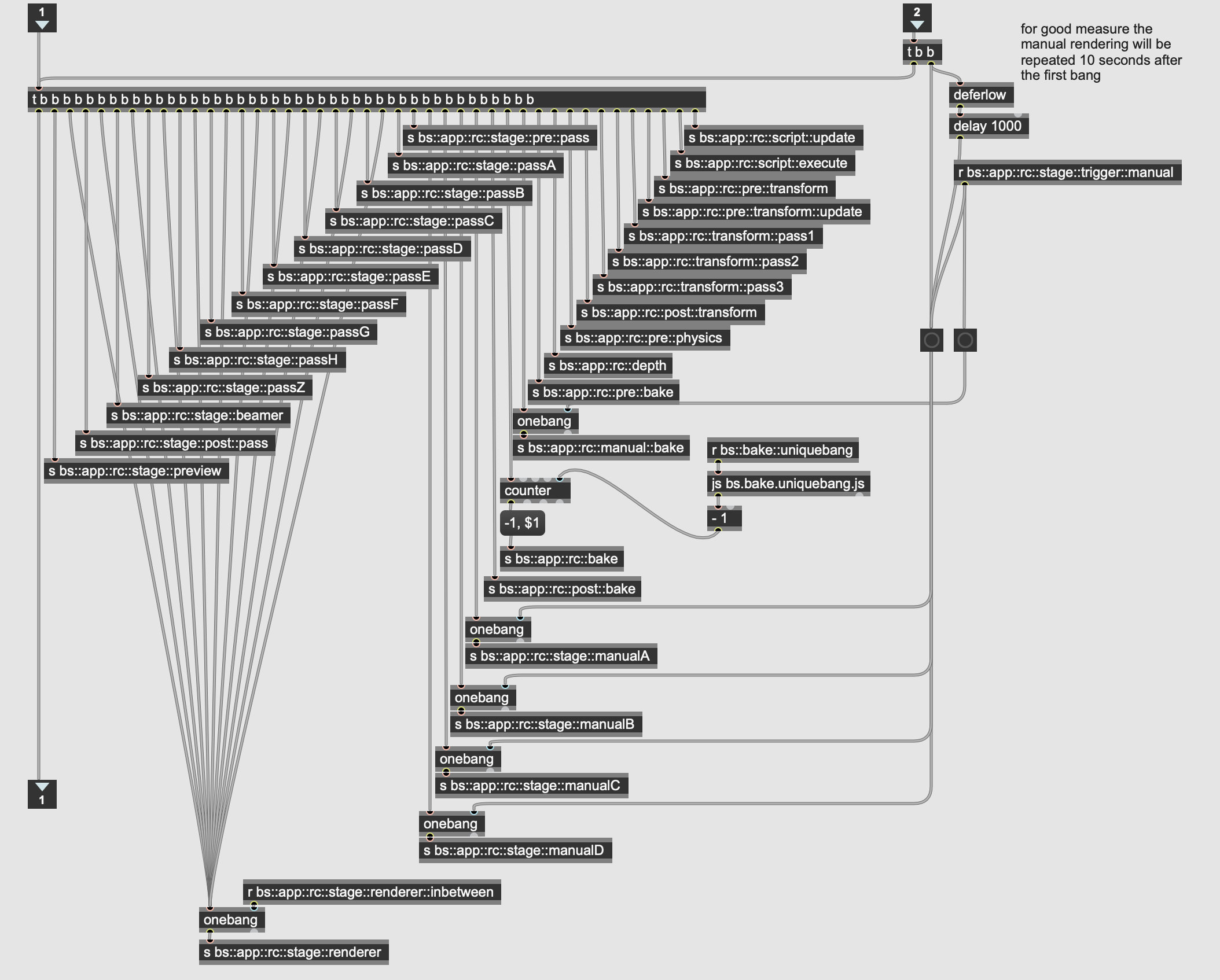

Overview of all passes in a frame

Not all passes can be accessed through node configuration settings. Some are for internal use only, but are shown here for completeness:

Script Passes

    1. Script-Update
    1. Script-Execute

Transform Passes

    1. Pre-Transform
    1. Pre-Transform Update
    1. Transform: pass1
    1. Transform: pass2
    1. Transform: pass3
    1. Post-Transform

Misc Passes

    1. Pre Physics
    1. Depth
    1. Pre Bake
    1. Manual Bake
    1. Bake
    1. Post Bake

Manual Render Passes

    1. Render Pass Manual A
    1. Render Pass Manual B
    1. Render Pass Manual C
    1. Render Pass Manual D

Render Passes

    1. Pre Render Pass
    1. Main Render Pass A
    1. Main Render Pass B
    1. Main Render Pass C
    1. Main Render Pass D
    1. Main Render Pass E
    1. Main Render Pass F
    1. Main Render Pass G
    1. Main Render Pass H
    1. Beamer Render Pass
    1. Post Render Pass
    1. Preview Render Pass

Tips for Working with Passes

  • Start with default settings and only adjust if you encounter ordering issues
  • If a texture appears black or outdated, check if the source node renders in an earlier pass
  • For transformation dependencies, ensure the source transform evaluates before the dependent one
  • Use the lowest pass number that achieves the correct ordering to maintain predictable behavior
