Spatial Augmented Reality¶
This article explains how to set up a SPARCK project for a use case in which four calibtated projectors are used to project onto moving objects inside a Motion Capture (optical system) volume, creating a Spatial Augmented Reality (SAR) environment.
In this setup, SPARCK calibrates four projectors installed in the corners of a room at mid‑height, enabling projection on moving objects as well as on the floor.
Once calibrated, SPARCK knows the exact position and orientation of each projector and determines the visible area (its view frustum). It accounts for each projector’s native resolution and technical characteristics, allowing precise content alignment on physical objects and surfaces.
Calibration is performed by selecting co‑planar vertices on a highly accurate 3D model of the room and using reference markers placed within the space.
After calibration, SPARCK uses the OptiTrack node to receive OSC2NatNet mocap data, which provides the real‑time position and orientation of tracked objects.
Since both the virtual and physical spaces are aligned through projector calibration, SPARCK can correctly project computer‑generated (CG) content onto moving objects and the floor.
This mapping is primarily handled by the SpatialShadery node, which computes how much of the content each projector should display and how bright each pixel should be for smooth colour blending.
Download the project files here: SAR_Projection.zip
SAR Setup with 4 Projectors¶
Start by adding SPARCK to your Max patch. See the Getting Started documentation for more information.

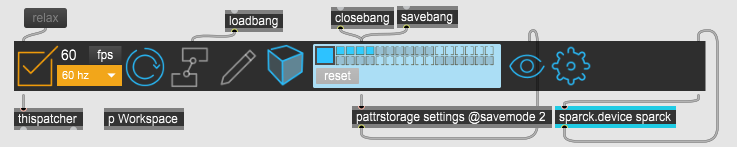

SPARCK
The image below shows the Max subpatcher p Workspace, which contains all necessary SPARCK nodes for this configuration.

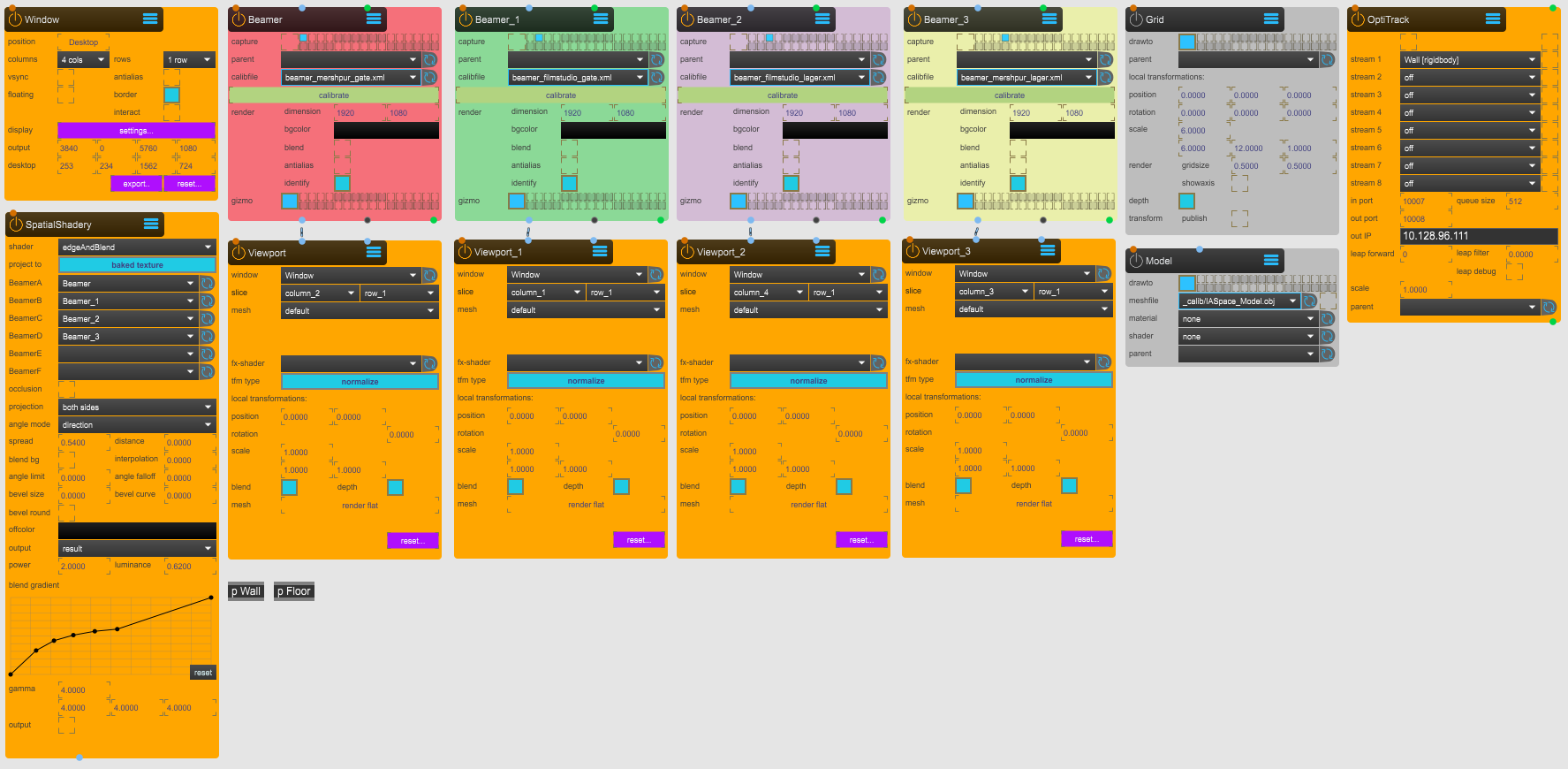

p Workspace subpatch
In white: a highly precise simplified 3D Model of the Immersive Arts Space. In black: a floor plane (using a Canvas node) with a Grid node. In colour: four wireframes representing calibrated projector positions. In the middle, in white: a traked moving wall.

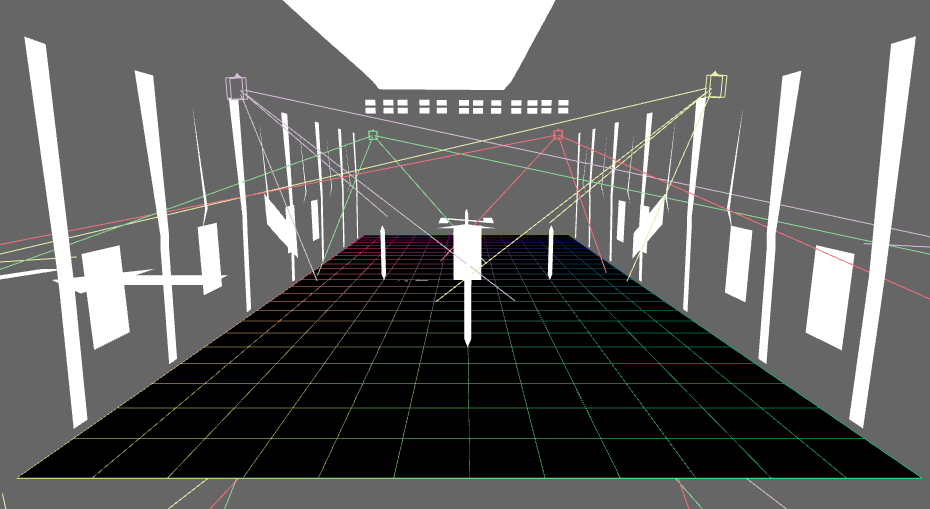

3DViewer preview of the virtual setup. In this image the Grid and Model nodes are enabled
Four frames correspond to the calibrated view of each projector. Projectors are color‑coded via the identify toggle in the Beamer node.

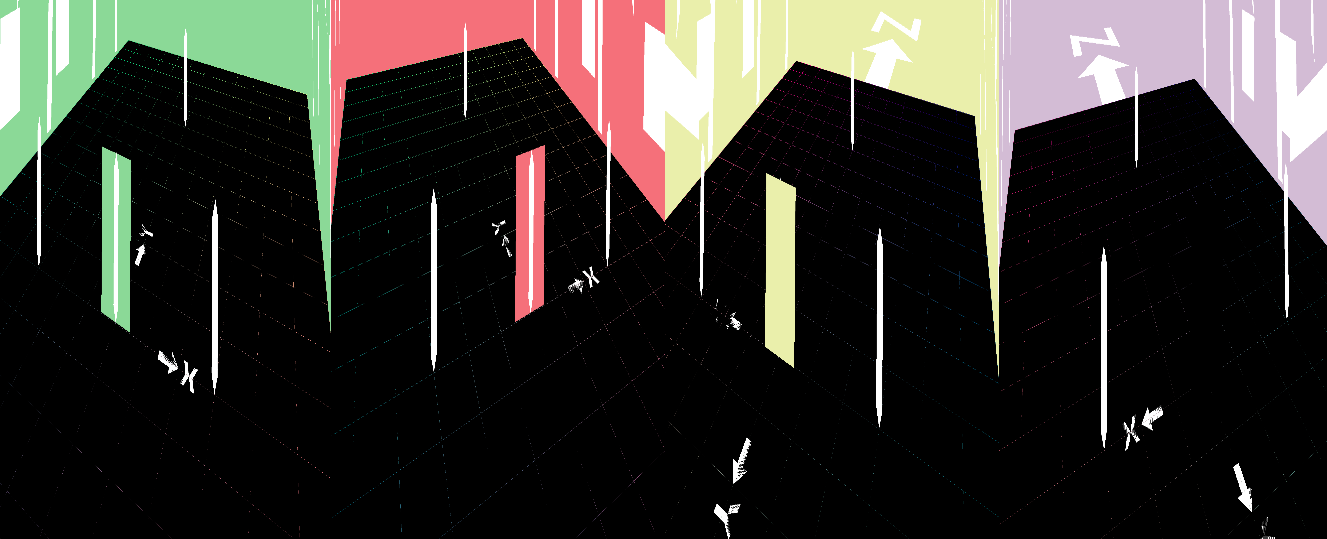

Window in Desktop preview (4 columns, 1 row). In this image the Grid and Model nodes are enabled
Nodes Configuration¶
The following sections explain how to correctly configure all nodes required for a Spatial Augmented Reality setup.
Window Node¶
The Window node outputs SPARCK’s rendered result to the projectors. It determines how content is distributed across the four projector outputs.
Window node — 1_UTILITY > WINDOW.maxpat
position: Switch between Output (content displayed on projectors) and Desktop (content preview).
columns and rows: Defines how the Window is divided. Set 4 columns and 1 row for four projectors.
display: settings... Opens the display setup tool. Select the projector displays (orange), then click Store and Close.

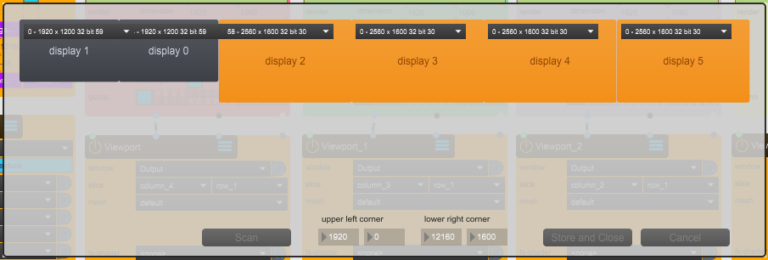

Display selection interface
Example: The system has two monitors (1920×1200, greyed out) and four projectors (2560×1600, orange). Only the projectors are selected.
Beamer Node¶
The Beamer node creates a virtual projector in SPARCK’s 3DViewer. It is essential for calibrating the projector’s spatial position, orientation, and lens properties. See the Calibration guide for details.
Beamer — 2_SPACE > BEAMER.maxpat
capture: Select the render layer for each Beamer. Each Beamer must use a different render layer (small turquoise square).
calibfile: Saves calibration data to a .xml file.
calibrate: Opens the calibration editor.
identify: Displays a colour background in both Window Output and Desktop to identify the projector.
gizmo: Shows the projector’s position in the 3DViewer.
Viewport Node¶
This node creates a texture displayed in a designated slice of the Window. When connected to a Beamer, it outputs that Beamer’s point of view.

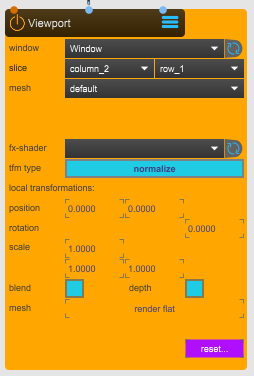

Viewport — 1_UTILITY > VIEWPORT.maxpat
window: Targets the Window node.
slice: Assign each Viewport to an unique slice: column 1–4, all using row 1.
Model Node¶
The Model node displays a simplified but accurate model of the Immersive Arts Space, helping visualize the positions of projectors, the floor plane, and tracked objects. It is deabled (grayed out) since is not an essential node.
Model node collapsed — 2_SPACE > MODEL.maxpat
drawto: Selects the render layer. Here, the Model appears only in the 3DViewer (large turquoise square).
meshfile: Loads a 3D model from Sparck/_assets/_models. Ensure polygon count is reasonable for performance.

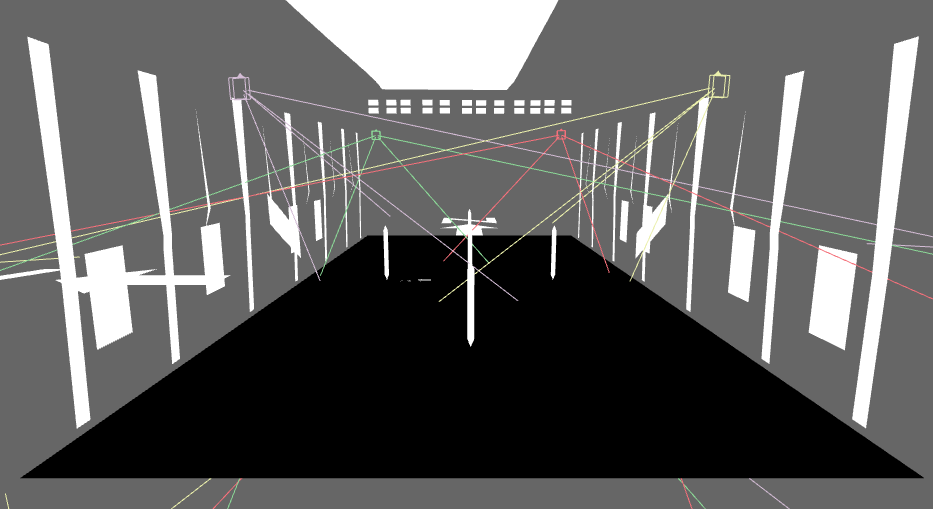

IAS Model and floor Canvas preview
Grid Node¶
The Grid node is a helper tool used to display a reference grid in SPARCK. It is disabled here but can be enabled for checking projector calibration accuracy: if the grid lines from both projectors overlap cleanly, calibration is good; if they appear doubled or misaligned, calibration needs adjustment. See Calibration for more information.
Grid node — 2_SPACE > GRID.maxpat
drawto: If enabled (large turquoise square), selects the render layer where the grid is shown. In this setup, it is visible only in the 3DViewer, but it can also be shown through the Beamer outputs if needed, especially to check calibration accuracy. See Calibration for more information.
scale: 1 SPARCK unit equal to 1 meter (100cm). In this case it maches the IAS floor plan (6m whide and 12m long).
render gridsize: Adjusts subdivision size.
showaxis: Enables or disables Grid axis display.

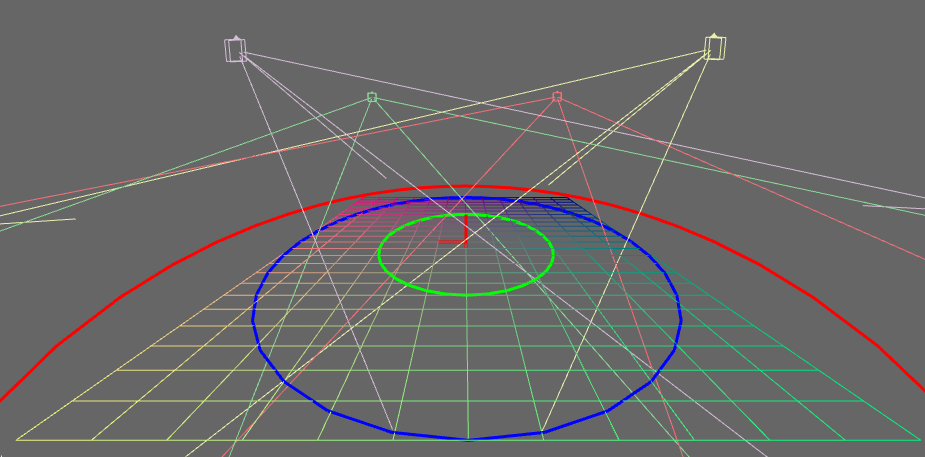

Grid axis diplay
SpatialShadery Node¶
The SpatialShadery node is at the core of Spatial Augmented Reality. It computes per‑projector pixel visibility and brightness, producing soft‑edge blending across all projectors.

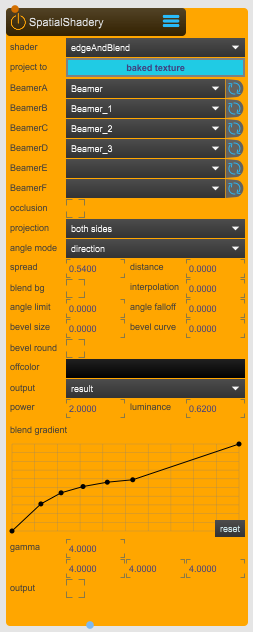

SpatialShadery node — 7_EFFECTS > SPATIAL.SHADERY.maxpat
shader: Use edge & blend for soft‑edge blending.
project to: Set to baked textures.
Beamer A–D: Assign each Beamer.
projection: Use both siedes.
spread: Controls the distribution of pixel blending between overlapping projections. 0 = no spread, 1 = full spread. Typical value: 0.54.
distance: Controls the distance as an additional differentiator. It will show its influence when the spread is increased. 0 = no distance, 1 = full distance. Find a good balance that fit your situation.
output: Set to result to display final blended output.

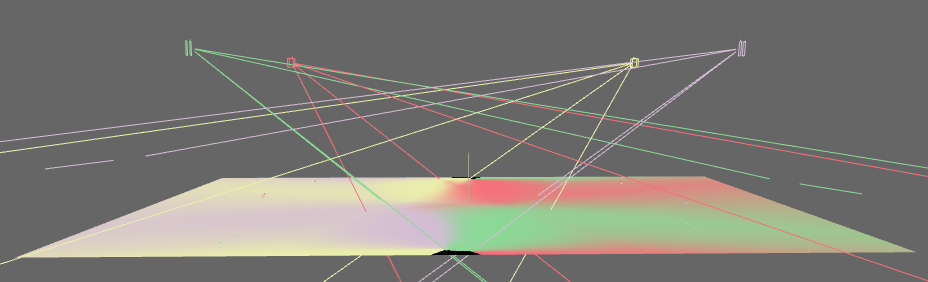

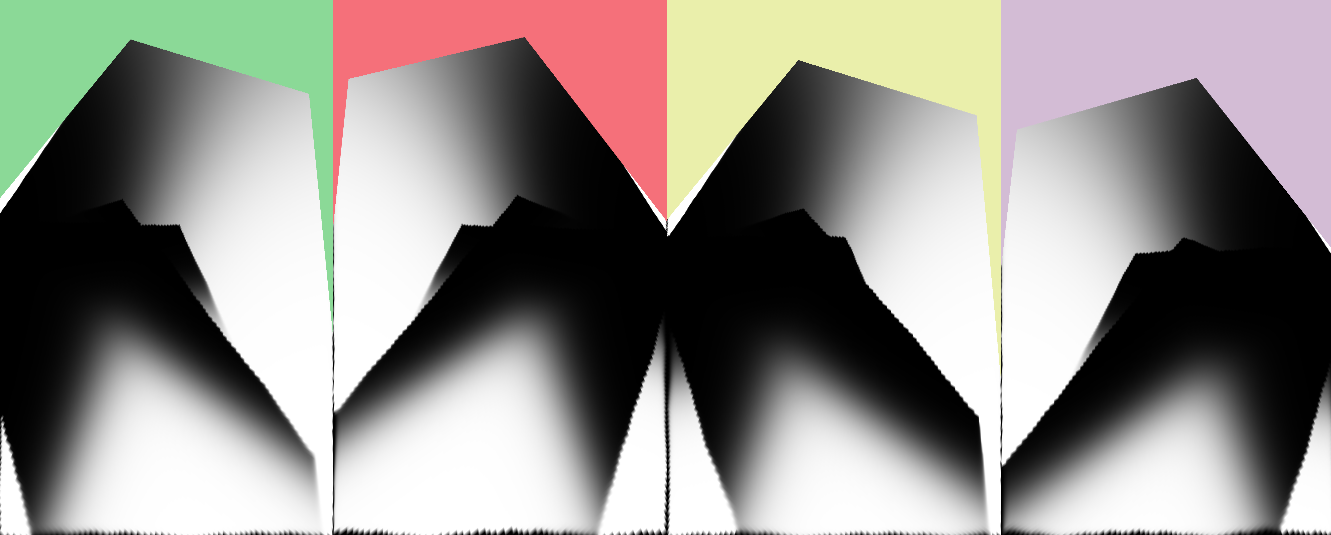

SpatialShadery with output set to mask, displaying the Beamers weights. It essently display how the per‑projector pixels are computed for the final result.
SpatialShadery with output set to mask, displaying the Beamers weights, previewed from the Window Desktop. Each slide is Beamer point of view.
power: Controls the soft-edge blending power. Find a good balance that fit your situation.
luminance: Adjusts the brightness balance. Find a good balance that fit your situation.
OptiTrack Node¶
The OptiTrack node receives rigidbody motion capture data from NatNet2OSC. It distributes this positional data inside SPARCK so virtual models and shapes can follow physical tracked objects.

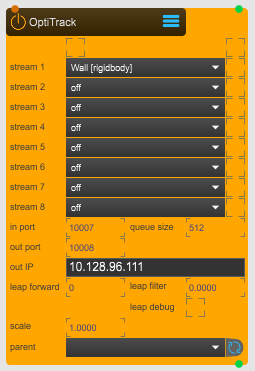

OptiTrack — 4_TRANSFORM > OT.RECEIVER.maxpat
stream 1–8: Select a rigidbody from Motive. Ensure unique names/IDs.
in port: Port where mocap data is received.
out port: Port where data is forwarded.
out IP: Destination IP for mocap forwarding.
leap forward: Predictive smoothing to reduce jitter from fast‑moving tracked objects.
Customize the project¶
You can extend this project by adding additional tracked objects, floor projection, or moving structures.
In this example, a floor projection and a tracked movable wall is added. They receive projection content (video, Spout stream, or static image). Add a p Wall and a p Floor subpatches to your Max project.
Max Subpatchers p Wall and p Floor.
Tracked wall projection¶
Inside the p Wall subpatcher, add a RigidBody, Video, and Canvas node.

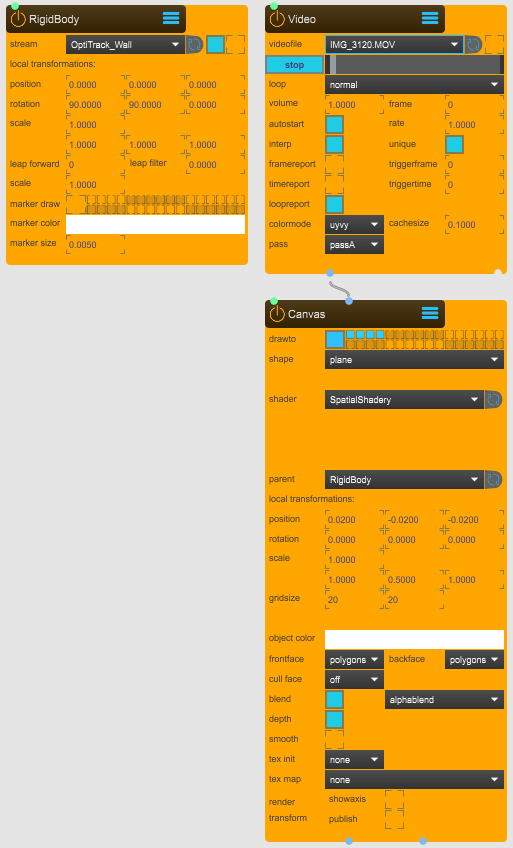

Setup for one tracked plane displaying a looping video
RigidBody Node¶
The Rigidbody node is a 3D space transformation node (position, rotation and scale) that receives transformation data from the OptiTrack node.
stream: Targets streams from the OptiTrack node.
position: Position x, y, z. If necessary, adjust these values to better fit the tracked projection surface. In this case, slight positional corrections are done on the Canvas node but they could have been done directly on the RigidBody node.
rotation: Rotation x, y, z. If necessary, adjust these values to better fit the tracked projection surface. In this case, a correction of 90° rotation had to be done.
scale: Scale x, y, z. If necessary, adjust these values to better fit the tracked projection surface. In this case, a correction of 90° rotation had to be done.
leap forward: If value is positive, it calculates forward predicted position. If value is negative, it queues the transformation for the amout of time (i.e. to make it synchronous with video feed that takes longer to capture). Adjust these values on your needs.
Video Node¶
The Video node loads and playback videos. This node is attached to the Canvas.
Video — 1_INPUT > VIDEO.maxpat
videofile: Load a and playback a file. All the video files should be put at this path located inside the SPARCK project folder: ../_assets/_videos
loop: set to loop, change it to suit your needs.
Canvas node¶
The Canvas node draws basic 3D shapes (plane, cube, sphere, custom mesh). It is lighter than the Model node and contains no material or lighting properties.

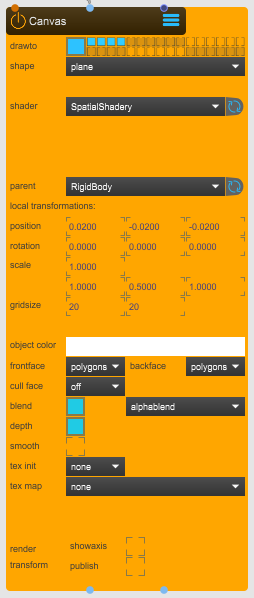

Canvas — 3_SPACE > CANVAS.maxpat
drawto: Selects the render layer. Here shown in SPARCK 3DViewer and on all the 4 Beamer layers.
shape: Select the geometry. For SAR floors, a plane is used.
shader: Assign the SpatialShadery shader for multi‑projector blended projection.
scale: Here set to the the physical tracked wall dimensions: 1m height × 0.5m widht.
Floor projection¶
For the p Floor subpatcher, add inside a SpoutReceiver and a Canvas nodes. A Video node could be used insted of a SpoutReceiver node.

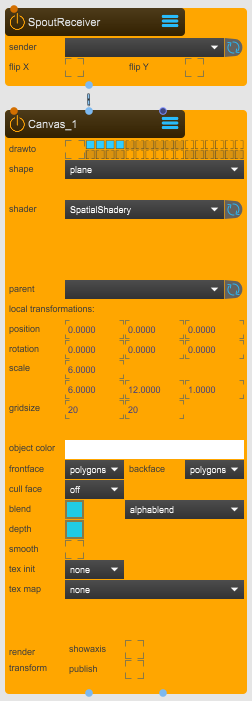

p Floor subpatch
SpoutReceiver Node¶
The SpoutReceiver node receives real‑time textures from applications such as TouchDesigner, Unity, Unreal, or Notch (and others) via Spout.
SpoutReceiver — 5_INPUT > SPOUT.RECEIVER.maxpat
sender: Select the Spout stream.
flip x / flip y: Flip texture orientation if needed.
Canvas Node¶
The Canvas node draws basic 3D shapes (plane, cube, sphere, custom mesh). It is lighter than the Model node and contains no material or lighting properties. In this case we use it to project content on the floor.

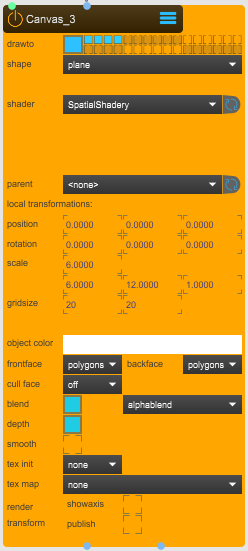

Canvas — 2_SPACE > CANVAS.maxpat
drawto: Selects the render layer. Here shown in 3DViewer and on all the 4 Beamer layers.
shape: Select the geometry. For SAR floors, a plane is used.
shader: Assign the SpatialShadery shader for multi‑projector blended projection.
scale: Here set to the IAS floor dimensions: 6m × 12m.
